High Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking Machine

Brand Name : IBON

Model Number : IB1209

Certification : CE

Place of Origin : DongGuan

MOQ : 1

Payment Terms : T/T,Western Union

Supply Ability : 300 sets per month

Delivery Time : 15~25days

Packaging Details : Wooden case

Product Name : Digital Leather Printing Machine

Style ways : Printing Line for Shoe Upper

Working Area : 1200 x 900mm

Ink Type : Flurescen ink

Power : 220-24v

Applicable : Shoe upper, Vamp, Cloth

Control : Computer

Contact Now

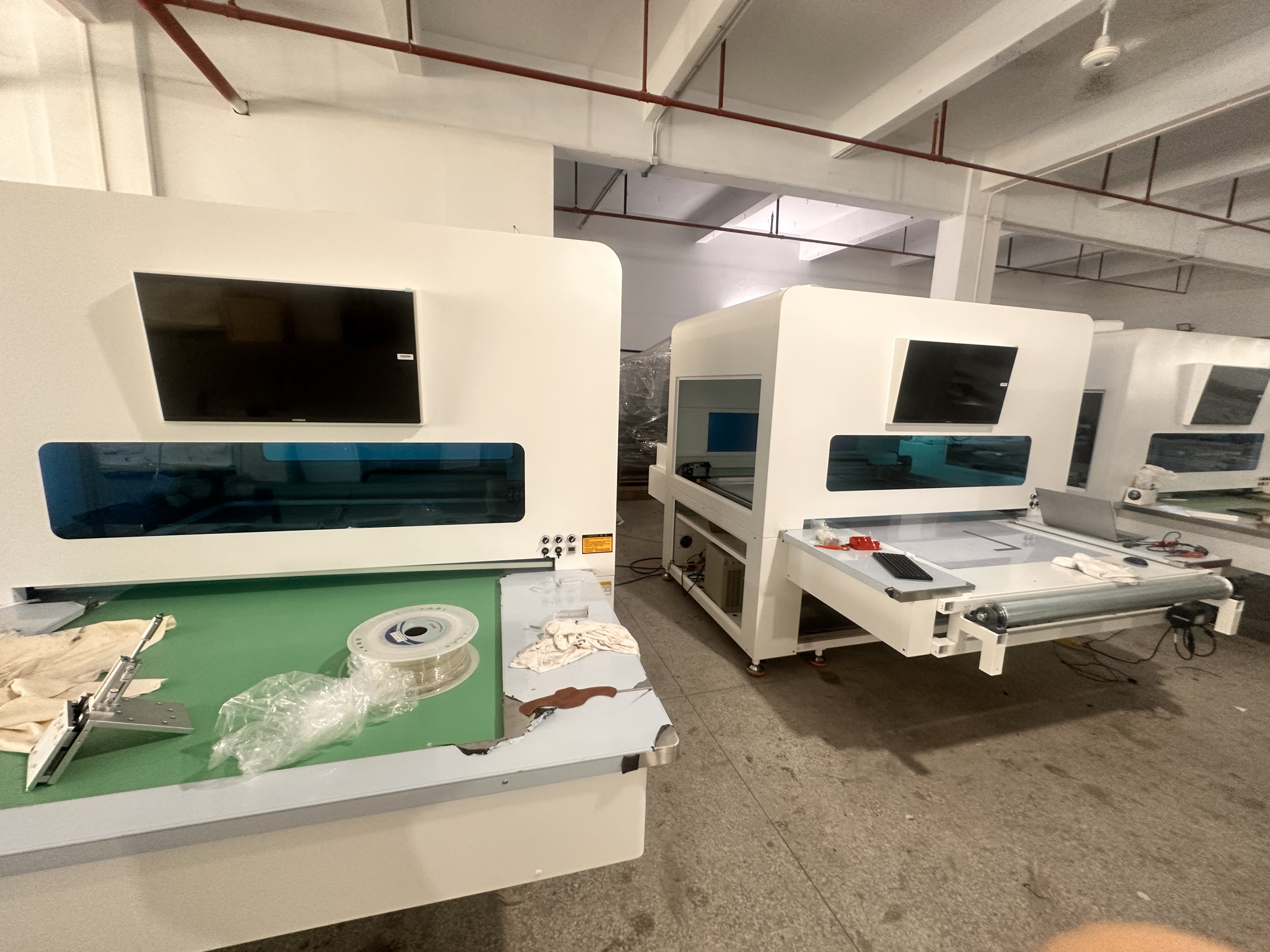

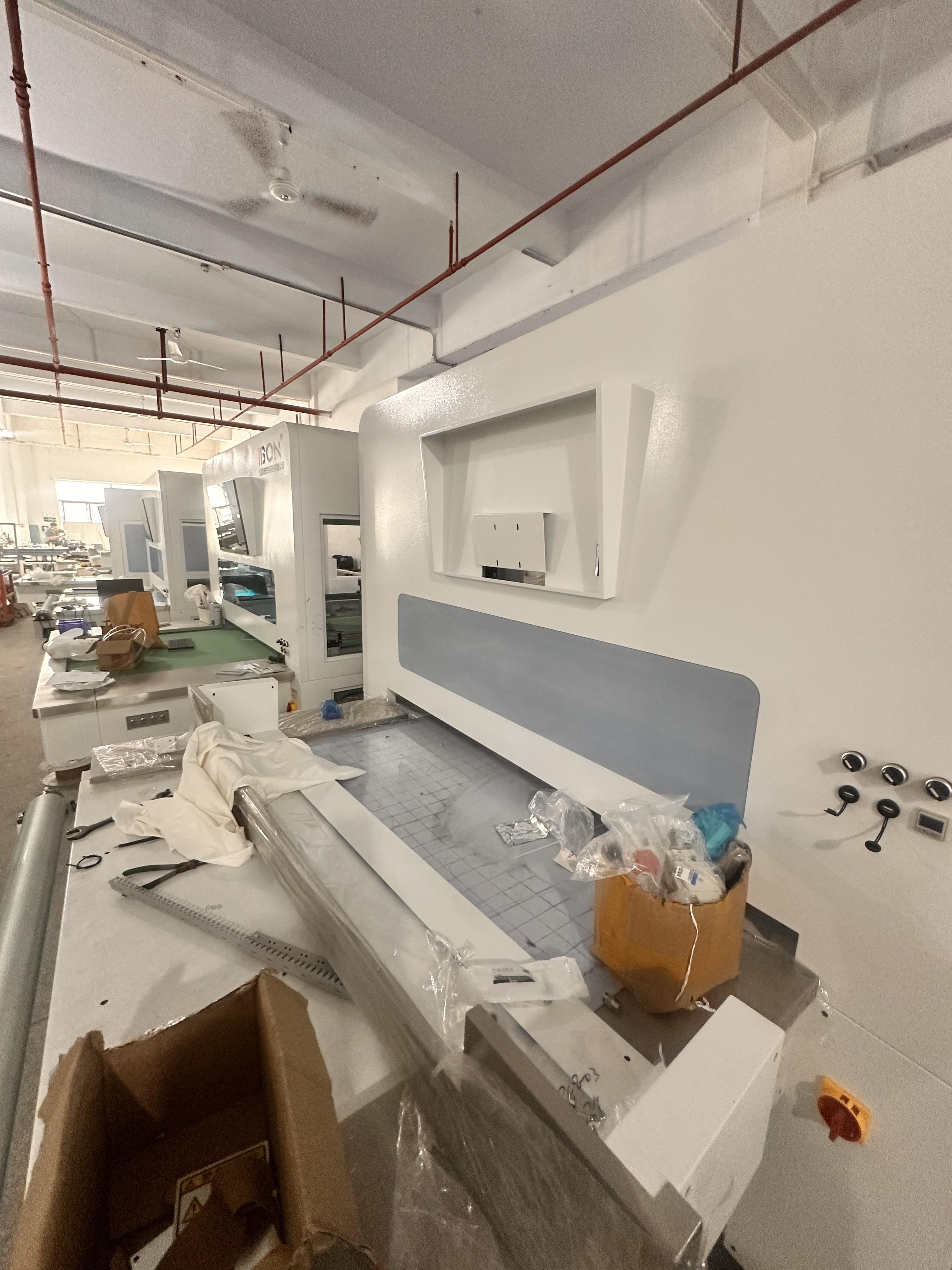

Full Automatic Intelligent Shoe Upper Marking Machine

1. This machine is suitable for high-precision line drawing process before sewing various shoe materials (PU, microfiber, leather, fabric, etc.)
2. Fully automatic assembly line operation, replacing traditional processes such as manual drawing and screen printing, efficient, environmentally friendly, energy-saving, using Mitsubishi servo motion module, fast speed, high accuracy, and low failure rate
3. Adopting HP high-speed inkjet head, with fine spray points and standard continuous ink supply system, saving material costs.
4. High precision industrial cameras, combined with drawing and visual computing systems, automatically recognize, accurately locate, and automatically draw lines.
5. Integrated inkjet printing mode, which is faster and more efficient than drawing lines according to trajectory.
6. The receiving platform is equipped with a standard drying system to ensure material quality
7.The ink supply system adopts a continuous automatic ink supply system. Compared with traditional manual ink addition, this system has strong stability and is easy to clean. At the same time, the ink pump of the ink supply system adopts a "one in use, one backup" form to ensure production and improve product stability. Can print invisible ink, washable ink, never disappear visible ink, etc. Switching ink is simple and easy to operate, without the need for cleaning, and can be automatically switched at any time.

Product Parameters
Product name smart shoe line marking machine
working area 1200mm*900mm
Ink type flurescent ink
Format PLT/DXF
Power 220-24v
Applicable shoe upper, vamp, cloth, carseat cover,
Control computer

High Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking Machine

High Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking MachineHigh Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking MachineHigh Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking Machine

High Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking Machine

High Speed Full Automatic Intelligent Line Marking Machine Shoe Material Shoe Upper Visual Marking Machine

Welcome to our automatic layout optimization system!

First, we import the pattern files that require line drawing. The system automatically recognizes and matches the shoe upper contours, ensuring precise alignment.

Once imported, the system automatically generates separate pattern pieces for all shoe sizes. Here, we can see the list: size 35, size 36, size 37... and so on.

On the right, we have a selection panel displaying all imported pattern pieces. You can easily select any size to view its corresponding cut pieces.

Now, let’s proceed with the operation! We select multiple sizes—35, 36, 37, and 38—to perform batch line drawing. You can also select just one size, such as size 35, or freely switch between sizes to adjust the drawing as needed.

With a simple and intuitive interface, you can easily complete the process with just a few clicks!

✅ Automatic Layout Optimization
✅ Automatic Size Recognition
✅ Integrated Auto Layout

Efficient, accurate, and easy to use—streamlining your workflow like never before!
